Window Wiper and Screen View Supply and Installation


1. Parallel Wiper

Overview

Marine parallel wiper is available in rectangular window for wheel house and control room. The shell of this wiper is aluminum-alloy, and all be oxidized by anode. In addition, the material of other parts is 316L stainless steel or copper. So the wiper has a wide ambient adaptability, and we can also offer CCS certificate for this wiper.

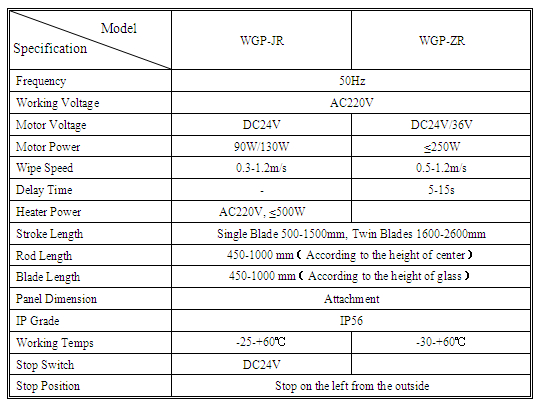

Specifications

Characteristic

Self-heating.

● Spray by cleansing solution.

Pipe pneumatic drying.

Auto reset.

Adjustable speed.

Multiple wipers sync.

In addition to the above parallel wiper, we can also offer the following wipers.

                                                         Explosion-proof Wiper                                              Fan Wiper



2. Marine Clear View Screen

Overview

Marine clear view screen is available in observation window for wheel house. It is driven by AC motor, and rotates at a high speed, then throws away rainwater, snow and seawater by centrifugal force. In addition, heater also can defreeze ice and snow in the cleaner to ensure normal operation.

Specifications

Series

S series ( Twin glasses)

Model

WS-300CR2

WS-350CR2

Transmission DIA

300mm

350mm

OD

356 mm

406 mm

Hole Size

Ф341±1

Ф391±1

IP Grade

IP56

Power Supply

AC220V/DC24V

Motor Power

≤80W

RPM

≥1400 rpm

Heater Power

≤250W/AC220V

Characteristic

Self-heating.

Throw away rainwater, snow and seawater by centrifugal force.

Protected against corrosion.

Fitted directly into the window glass, without a large center hole.

Suitable for various windows.
