Name:                                     Hydraulic remote control grab

Range of application：             30t crane

Packing product：                  1.208-2.41t/M³

Capacity:                                  6-12M³

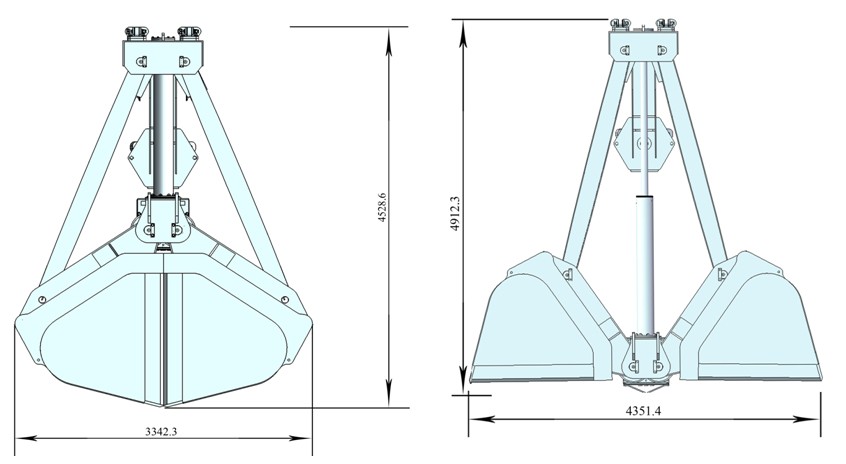

Open size:                                3200*4351*4912mm (refer to dwg)

Close size:                                3200*3342*4528mm (refer to dwg)

Max. working pressure:            200Bar

Dead weight:                            9.5T

Rated net load:                         14.5T

Grab serial No.:                       321,322,323,324

System of protection:                IP 65

Working voltage：                   DC24V

                       Open time：                           9S

                       Closing time：                        The same as the crane hoisting speed
